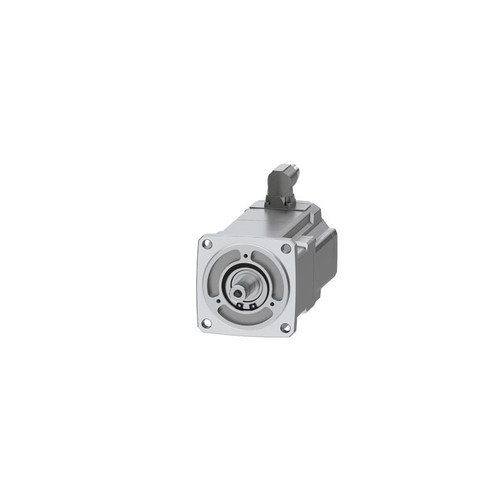

Main product image

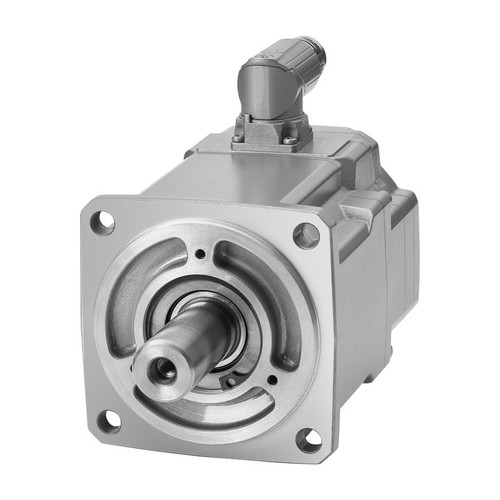

Main product image

  • Guaranteed Quality

    Always the correct part

  • In-House Experts

    We know our products

  • Technical

    After sales support

  • Wordwide Delivery

    Free shipping on all order

1FK2104-4AF11-1MA0 SIEMENS

SKU: 1FK21044AF111MA0
$30,699.72
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 3.50 KGS
Width: 20.00 (cm)
Height: 15.00 (cm)
Depth: 30.00 (cm)
HS Code / Commodity code: 85015100
Adding to cart… The item has been added
Description
The SIMOTICS S-1FK2 HD servo motor 1FK2104-4AF11-1MA0 from Siemens is a high-dynamic motor designed for demanding applications. It delivers a stall torque of 1.27 Nm and a rated power of 0.4 kW at a rated speed of 3000 rpm when operated within a 380-480 V range. When used within a 200-240 V range, the rated power is 0.2 kW at a rated speed of 1500 rpm. This motor includes a holding brake for secure standstill positioning. It features an IP65 degree of protection, ensuring resistance to dust and water spray. The shaft dimensions are D19x40 mm, incorporating a feather key for reliable power transmission. An absolute encoder (AM22DQC) provides precise position feedback with 22-bit single-turn and 12-bit multi-turn resolution. The motor is equipped with an OCC interface and a rotatable connector size M17 for flexible connectivity.
