1FK2204-6AF01-1SA0 SIEMENS

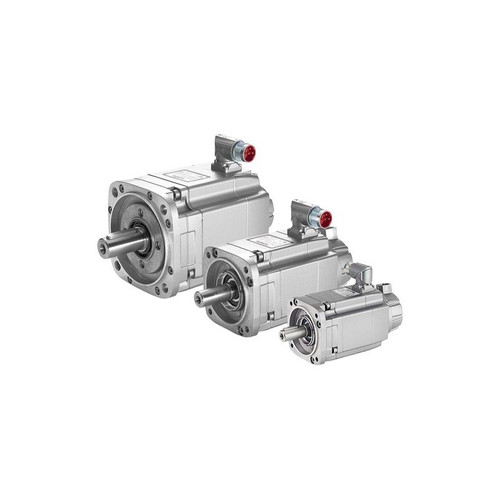

The SIMOTICS S-1FK2 CT servo motor, model 1FK2204-6AF01-1SA0, is a compact and dynamic drive solution designed for demanding applications. It delivers a stall torque (M0) of 3.2 Nm and a rated power (PN) of 1 kW at a rated speed (nN) of 3000 rpm when operated within a voltage range of 380-480 V. Alternatively, it provides a rated power of 0.5 kW at a rated speed of 1500 rpm when supplied with a voltage range of 200-240 V. This motor features an IP65 degree of protection, ensuring robust performance in harsh environments with dust and water exposure. The shaft has dimensions of D19x40 mm and includes a feather key for secure power transmission. Equipped with a high-resolution absolute encoder single-turn 22-bit (encoder AS22DQC), it offers precise position feedback. The motor incorporates an OCC (One Cable Connection) interface, simplifying cabling and reducing installation time. The connector size is M17 and is rotatable, providing flexibility in cable routing and connection. This servo motor is ideal for applications requiring high precision, dynamic response, and reliable operation.
