1FK2206-2AF01-1MA0 SIEMENS

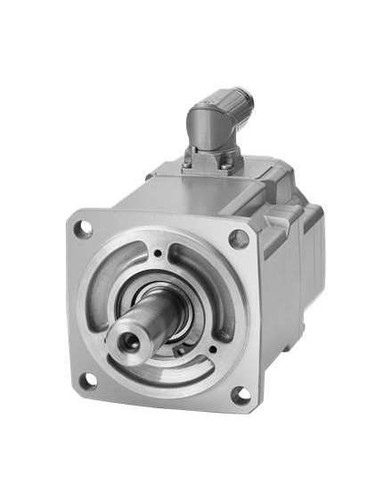

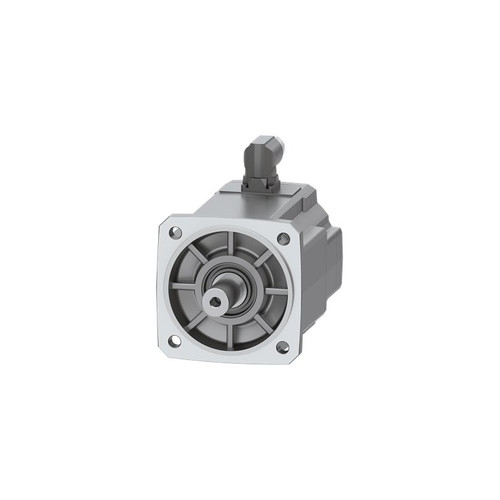

The SIMOTICS S-1FK2 CT servo motor, model 1FK2206-2AF01-1MA0 from Siemens, is a high-performance motor designed for demanding industrial applications. It delivers a stall torque (M0) of 6.5 Nm and a rated power (PN) of 1.71 kW at a rated speed (nN) of 3000 rpm when operating within a voltage range of 380-480 V. Alternatively, it provides a rated power of 0.97 kW at a rated speed of 1500 rpm when powered by a voltage range of 200-240 V. This motor boasts an IP65 degree of protection, ensuring resilience against dust and water ingress, making it suitable for harsh environments. The shaft dimensions are D24x50 mm and feature a feather key for secure mechanical power transmission. Equipped with an absolute encoder (AM22DQC) that offers 22-bit single-turn and 12-bit multi-turn resolution, it provides precise position feedback. The motor incorporates an OCC (One Cable Connection) interface, simplifying wiring and reducing installation costs. The connector size is M23 and is rotatable, offering flexible connection options. This servo motor is ideal for applications requiring accurate control, high dynamics, and robust performance.
