1FK2210-3AC01-1MA0 SIEMENS

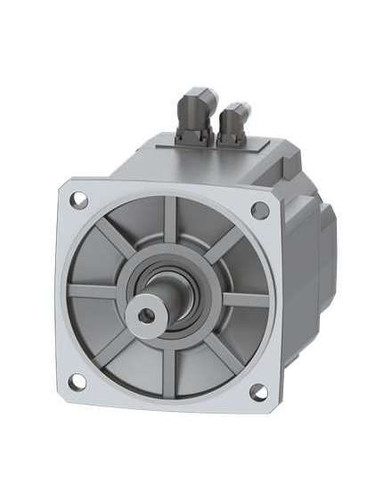

The SIMOTICS S-1FK2 CT servo motor, model 1FK2210-3AC01-1MA0 from Siemens, is a high-performance synchronous motor designed for demanding industrial applications. It delivers a stall torque (M0) of 30 Nm and a rated power (PN) of 5.5 kW at a rated speed (nN) of 2000 rpm when operated within a voltage range of 380-480 V. Alternatively, it provides a rated power of 3.2 kW at a rated speed of 1000 rpm when supplied with a voltage range of 200-240 V. This motor features a robust IP65 degree of protection, ensuring reliable operation in harsh environments with dust and water exposure. The shaft has dimensions of D38x80 mm and includes a feather key for secure mechanical power transmission. Equipped with an absolute encoder (22-bit + 12-bit Multi-turn, encoder AM22DQC), it offers precise position feedback for accurate control. The motor incorporates an OCC interface for seamless communication and control within a system. Its connector size is M23 and is rotatable, providing flexibility in installation and cable routing. This servo motor is ideal for applications requiring high dynamics, precision, and reliability.
