1FT21021AG000SA0-Z A23+M00+R80

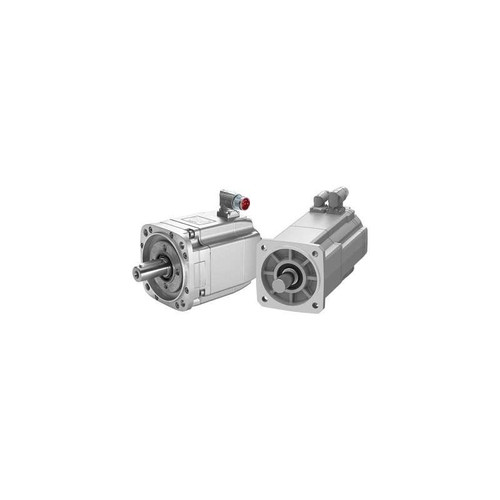

The SIMOTICS S-1FT2 HD synchronous motor 1FT21021AG000SA0-Z A23+M00+R80 from Siemens is a high-performance servo motor designed for demanding industrial applications. This motor delivers a stall torque of 0.32 Nm and a rated power of 0.1 kW at 3000 rpm when operating within a 200-240 V range. It features an OCC (One Cable Connection) interface with a rotatable M12 plug for simplified and flexible connectivity. The motor is designed without a brake and offers IP64 protection, ensuring reliable operation in harsh environments. Its smooth shaft extension facilitates easy integration into various mechanical systems. Equipped with an absolute encoder single-turn 22-bit (encoder AS22DQC), it provides precise position feedback. The A23 configuration includes a planetary gearbox NRB060 3-stage, resulting in modified rated values as specified on the motor's nameplate. The M00 designation indicates a cylindrical gearbox shaft extension, while the R80 specifies a gear ratio of i = 80.
