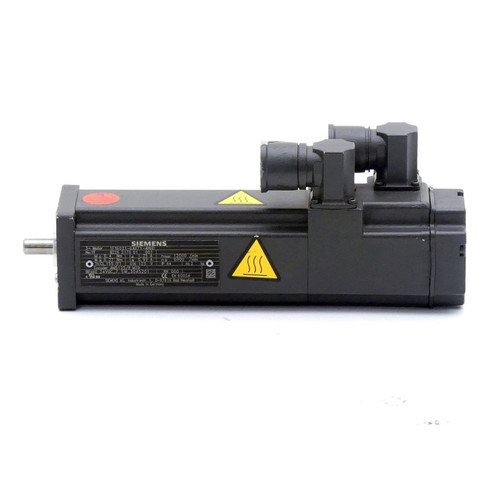

1FT6064-6AK71-3DG1 SIEMENS

The SIMOTICS S 1FT6064-6AK71-3DG1 is a high-performance synchronous servo motor designed for demanding industrial applications. This motor delivers a continuous torque of 9.5 Nm and is rated for operation at 100K, with a maximum speed of 6000 rpm. Cooling is achieved through natural convection, simplifying installation and maintenance. The motor is designed with an IM B5 mounting configuration (also compatible with IM V1 and IM V3). Power and signal connections are facilitated through a connector with an axial NDE (non-drive end) outlet direction. Feedback is provided by an incremental encoder with a resolution of 2048 S/R (encoder I-2048) and a DRIVE-CLiQ interface for seamless integration with Siemens drive systems. The motor features a smooth shaft with a circular runout tolerance of N, and it is not equipped with a holding brake. It meets vibration severity grade N standards and includes a gamma sealing ring for IP65 protection, ensuring reliable operation in harsh environments. This robust design guarantees precise and dynamic performance in a variety of servo applications.
