1LE1503-1DB23-4FB4 SIEMENS

SKU: 1LE15031DB234FB4
$32,512.32
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 75.00 KGS
Width: 50.00 (cm)
Height: 60.00 (cm)
Depth: 80.00 (cm)
HS Code / Commodity code: 85015230
Adding to cart… The item has been added
Description

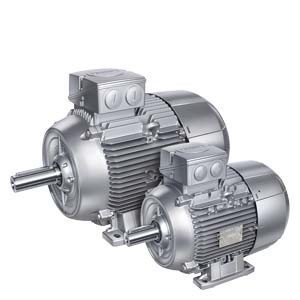

The 1LE1503-1DB23-4FB4 Siemens motor, also known as SD motor type 1CV3162B, is a low-voltage, IEC squirrel-cage rotor motor designed for industrial applications. This self-cooled motor features an IP55 protection rating, ensuring resilience against dust and water ingress. Its temperature class is 155(F), utilizing 130(B) insulation, all encased in a robust gray cast iron housing. As part of the Basic Line, this motor offers Premium Efficiency IE3 performance. It is a 4-pole motor with a size of 160M, delivering 11 kW at 50 Hz and 12.6 kW at 60 Hz. The standard color is RAL 7030, unless otherwise specified. This motor is suitable for 3 AC power systems, supporting 400 VD/690 VY at 50 Hz and 460 VD at 60 Hz. It is configured for IM B5 mounting with a flange FF300 (A350) and includes 3 PTC thermistors for disconnection, accessible via 2 terminals in the top-mounted terminal box. Note that the product may be delivered under either the Siemens or Innomotics product brand.
