1LE1503-2AB53-4AA4-Z B02+H01+L25

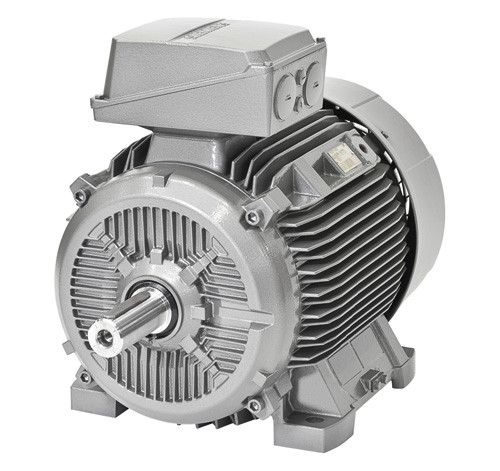

The 1LE1503-2AB53-4AA4-Z B02+H01+L25 is a premium efficiency IE3 low-voltage motor from Siemens, designed as an IEC squirrel-cage rotor motor with self-cooling and IP55 protection. It features a robust gray cast iron housing and complies with temperature class 155(F) according to 130(B). This motor is optimized for both 50 Hz and 60 Hz operations, delivering 30 kW at 50 Hz and 34.5 kW at 60 Hz. The motor is a 4-pole design with a size of 200L and is finished in standard RAL 7030 color, unless otherwise specified. This motor supports 3 AC power at 400 VD/690 VY for 50 Hz and 460 VD for 60 Hz. The motor is configured in IM B3 mounting without motor protection and includes a terminal box at the top. Additional features include an acceptance test certificate 3.1 according to EN 10204 (B02), screwed-on feet (H01), and reinforced bearings on both the drive end (DE) and non-drive end (NDE) with bearing size 63 (L25).
