1PH8107-1DD02-0BA1 SIEMENS

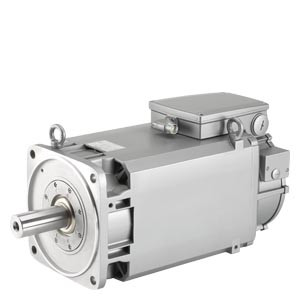

The SIMOTICS M compact asynchronous motor 1PH8107-1DD02-0BA1 from Siemens is a high-performance motor designed for demanding industrial applications. It operates at various speeds, including 1000 r/min with 6.3 kW power, 60 Nm torque, 17.5 A current at 307 V; 1150 r/min with 7.2 kW, 60 Nm, 17.5 A at 348 V; 1350 r/min with 8 kW, 57 Nm, 17 A at 400 V; and 1500 r/min with 8.8 kW, 56 Nm, 17 A at 440 V. The motor features forced ventilation with the direction of air flow from the drive end (DE) to the non-drive end (NDE), ensuring optimal thermal management. It has an IP55 degree of protection, safeguarding it against dust and water ingress. An incremental encoder with 22-bit resolution and commutation position (encoder IC22DQ) is integrated, utilizing a DRIVE-CLiQ interface for precise control and feedback. The motor's design is IM B5 (IMV 1, IM V3) with a plain shaft without a fitted key. It is equipped with standard bearings with a fixed bearing arrangement, vibration severity grade R/A, and shaft and flange accuracy R. The terminal box is located above, with cable entry on the right side and signal connection at the D-end.
