1PH8137-1DG10-2FA1 SIEMENS

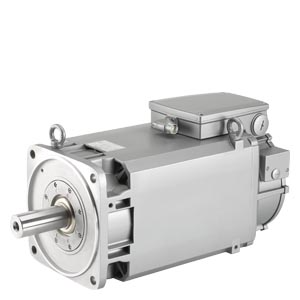

The SIMOTICS M compact asynchronous motor 1PH8137-1DG10-2FA1 is a high-performance motor designed for demanding industrial applications. It offers a rated speed of 2000 r/min and delivers 28 kW of power, producing a torque of 134 Nm with a current draw of 60 A at 350 V. Additionally, it can operate at 2300 r/min with 29 kW, 120 Nm, 56 A at 398 V; 2650 r/min with 30 kW, 108 Nm, 52 A at 460 V; and 2800 r/min with 31 kW, 106 Nm, 52 A at 494 V. The motor features forced ventilation with an NDE to DE airflow direction, ensuring optimal thermal management and reliable operation. Its IP55 degree of protection safeguards against dust and water ingress, making it suitable for harsh environments. An incremental encoder with 22-bit resolution and commutation position (IC22DQ) is integrated, utilizing a DRIVE-CLiQ interface for precise control and feedback. The motor is designed in IM B3 (IM V5, IM V6) configuration and includes a shaft with a fitted key, half-key balancing, and bearings designed to withstand increased radial forces. Vibration severity grade is R/A, with shaft and flange accuracy rated as R. The terminal box is located above, with cable entry on the right side and signal connections on the D-end.
