3SE5114-0CD02-1AC5 SIEMENS

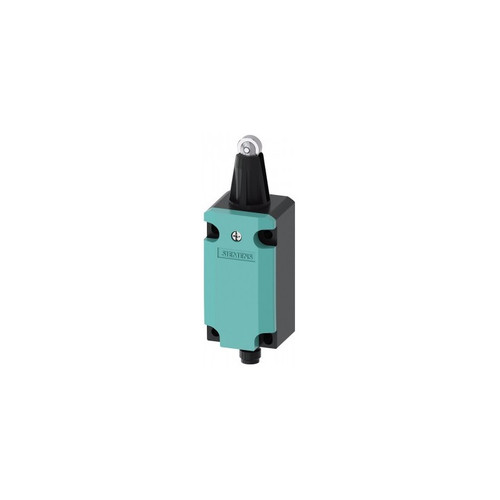

The 3SE5114-0CD02-1AC5 is a robust position switch manufactured by Siemens, designed for precise and reliable position detection in industrial applications. This switch features a durable metal enclosure with a 40mm mounting dimension conforming to EN 50041 standards, ensuring compatibility and ease of integration. Equipped with a roller plunger actuator, the switch is ideal for applications requiring mechanical actuation through moving parts. The electrical contacts are configured as 1 Normally Open (NO) and 1 Normally Closed (NC) quick action contacts, providing versatile switching capabilities. Connection is facilitated via a fixed, 5-pole M12 connector, simplifying wiring and maintenance. The pin assignment is clearly defined as follows: PIN1=21, PIN2=22, PIN3=13, PIN4=14, and PIN5=PE (Protective Earth). This fixed pin assignment ensures consistent and error-free connections. The quick action contacts enhance responsiveness and reduce contact bounce, improving the overall reliability of the system. This position switch is suitable for safety-related applications where accurate and dependable position sensing is critical. Its rugged construction and standardized dimensions make it a dependable choice for demanding industrial environments.
