4AM3242-4TJ10-0FA0 SIEMENS

SKU: 4AM32424TJ100FA0
$1,106.64
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 1.50 KGS
Width: 7.50 (cm)
Height: 8.00 (cm)
Depth: 9.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

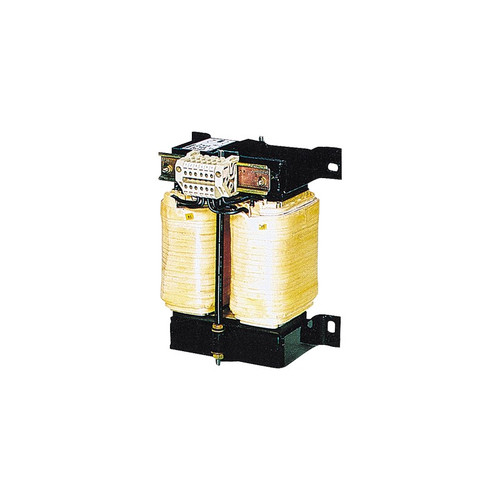

The 4AM3242-4TJ10-0FA0 is a SITAS single-phase transformer designed for control circuit and isolation applications. It features a primary voltage of 230V with a +/-5% tolerance and a secondary voltage of 110V, delivering a secondary current of 0.57A. The transformer is rated at 0.063 kVA for continuous operation and 0.19 kVA for S6 duty cycles. It is suitable for frequencies ranging from 50 to 60 Hz. The vector group and shield winding configuration is II0/0. With a TA/ISOKL rating of 40/B, it can operate in ambient temperatures up to 40 degrees Celsius with insulation class B. The transformer has an IP00 protection rating and utilizes screw/tab connections for terminals. Installation can be achieved via screws or mounting rails. It complies with EN 61558-2-1, -2-2, and -2-4 standards and is UL/CSA-recognized.
