4AM3442-8DN00-0EA0 SIEMENS

SKU: 4AM34428DN000EA0
$1,507.32
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 2.50 KGS
Width: 9.00 (cm)
Height: 13.00 (cm)
Depth: 11.00 (cm)
HS Code / Commodity code: 85049090
Adding to cart… The item has been added
Description

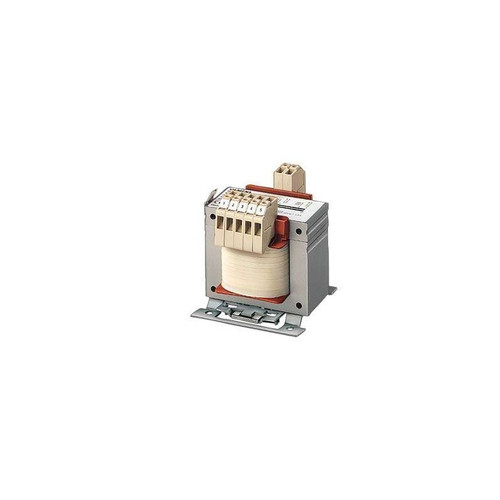

The 4AM3442-8DN00-0EA0 is a SITAS single-phase transformer designed for control circuit and safety isolation applications. It features a primary voltage range of 550-525-500-480-460-440-415-400-380-230-208V and a secondary voltage of 24V. The secondary current is rated at 4.17A. The transformer is suitable for operation at frequencies of 50 to 60 Hz. It has a vector group/shield winding configuration of II0/0. The ambient temperature rating is 40°C, and the insulation class is B. The transformer is designed with an IP00 protection rating and utilizes screw/tab connections for terminals. Installation can be achieved via screws or mounting rails. This transformer complies with EN 61558-2-2 and -2-6 standards and is UL/CSA-recognized.
