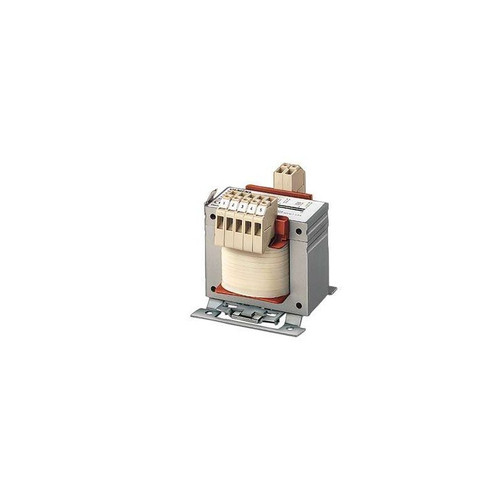

Main product image

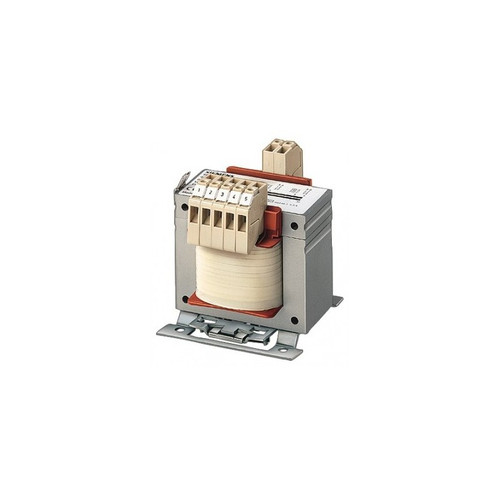

Main product image

  • Guaranteed Quality

    Always the correct part

  • In-House Experts

    We know our products

  • Technical

    After sales support

  • Wordwide Delivery

    Free shipping on all order

4AM3442-8JN00-0EA0 SIEMENS

SKU: 4AM34428JN000EA0
$1,087.56
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 2.50 KGS
Width: 9.00 (cm)
Height: 13.00 (cm)
Depth: 12.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description
The 4AM3442-8JN00-0EA0 is a SITAS single-phase transformer designed for control circuit and safety isolation applications. It features a primary voltage adaptable to 400-230V with a ±15V tolerance, and a secondary voltage of 24V, delivering a secondary current of 4.17A. The transformer is rated for 0.1 kVA continuous power (PN) and 0.31 kVA intermittent power (PN(S6)). Operating within a frequency range of 50 to 60 Hz, it adheres to vector group II0 with a shield winding configuration of /0. The transformer is designed for an ambient temperature (TA) of up to 40°C and insulation class B. It is housed in an IP00 enclosure, offering protection against solid objects but not against water. Termination is facilitated through screw/tab connections, and installation can be achieved via screws or mounting rails. Compliant with EN 61558-2-2 and -2-6 standards, it is also UL/CSA-recognized, ensuring adherence to international safety and performance benchmarks.
