4AM3842-8DN00-0EA0 SIEMENS

SKU: 4AM38428DN000EA0
$1,812.60
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 3.50 KGS
Width: 12.00 (cm)
Height: 15.00 (cm)
Depth: 18.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

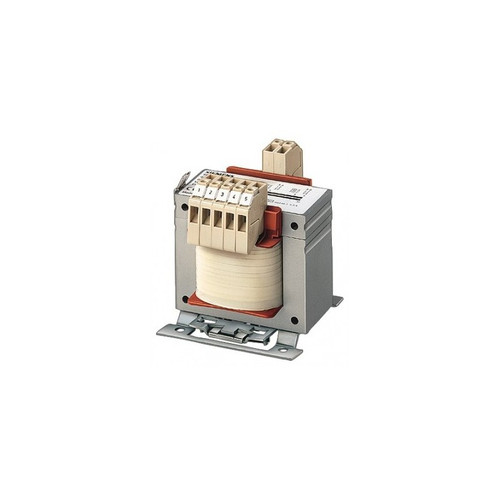

The 4AM3842-8DN00-0EA0 is a SITAS single-phase transformer designed for control circuit and safety isolation applications. It features a primary voltage range of 550-525-500-480-460-440-415-400-380-230-208V and a secondary voltage of 24V. The transformer's rated power is 0.16 kVA for continuous operation and 0.49 kVA for short-time duty (S6). It delivers a secondary current of 6.67A and operates at a frequency of 50...60 Hz. The vector group is II0 with a shield winding configuration of /0. The transformer is designed for an ambient temperature of up to 40°C and has an insulation class of B. It is rated IP00 and utilizes screw/tab connections for terminals. Installation can be achieved via screws or mounting rails, and it complies with EN 61558-2-2 and -2-6 standards. Furthermore, it is UL/CSA-recognized, ensuring adherence to safety standards for control circuit transformers and safety isolating transformers.
