4AM4342-5AT10-0FA0 SIEMENS

SKU: 4AM43425AT100FA0
$2,060.64
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 4.50 KGS
Width: 16.00 (cm)
Height: 15.00 (cm)
Depth: 18.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

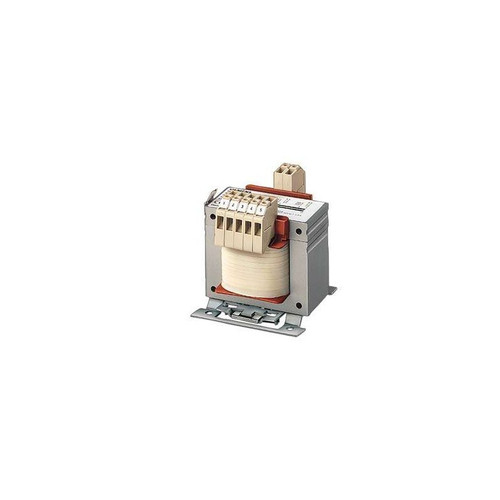

The SIEMENS SITAS transformer 4AM4342-5AT10-0FA0 is a single-phase transformer designed for control circuit and isolation applications. It features a primary voltage of 400V with a +/-5% tolerance and a secondary voltage of 230V. The transformer's rated power is 0.315 kVA for continuous operation and 1.12 kVA for S6 duty. The secondary current is 1.37A, and it is suitable for frequencies between 50 and 60 Hz. The vector group is II0 with a shield winding configuration of /0. It is designed for an ambient temperature of up to 40 degrees Celsius and has an insulation class of B. The transformer has an IP00 protection rating and utilizes screw/tab connections for terminals. Installation is achieved via screw mounting, and it complies with EN 61558-2-1, -2-2, and -2-4 standards. It is also UL/CSA-recognized.
