4AM5242-5AT10-0FA1 SIEMENS

SKU: 4AM52425AT100FA1
R61,083.45
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 4.50 KGS
Width: 12.00 (cm)
Height: 13.00 (cm)
Depth: 15.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

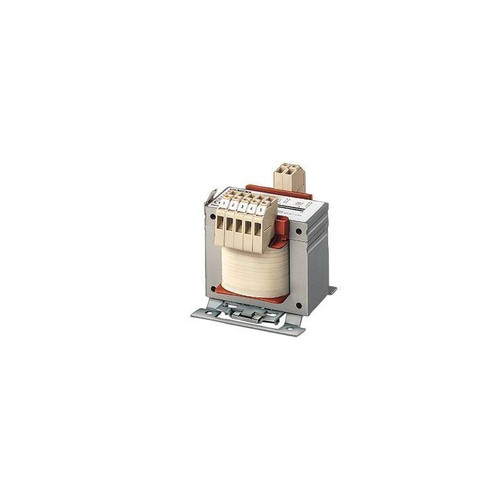

The 4AM5242-5AT10-0FA1 is a SITAS single-phase transformer designed for control and isolation applications. It features a primary voltage of 400V with a ±5% tolerance and a secondary voltage of 230V, delivering a secondary current of 2.74A. The transformer is rated at 0.63 kVA for continuous operation (PN) and 2.35 kVA for short-time duty (PN(S6)). It is suitable for operation at frequencies of 50 to 60 Hz. The vector group is II0 with a shield winding configuration of /0. The transformer is designed for an ambient temperature of up to 40°C and insulation class B. It offers IP00 protection and utilizes cage-clamp terminals for secure connections. Installation is achieved via screw mounting, and it complies with EN 61558-2-1, -2-2, and -2-4 standards. Additionally, it is UL/CSA-recognized, ensuring adherence to North American safety standards.
