4AM5242-5FT10-0FC0 SIEMENS

SKU: 4AM52425FT100FC0
$4,903.56
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 5.50 KGS
Width: 18.00 (cm)
Height: 15.00 (cm)
Depth: 20.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

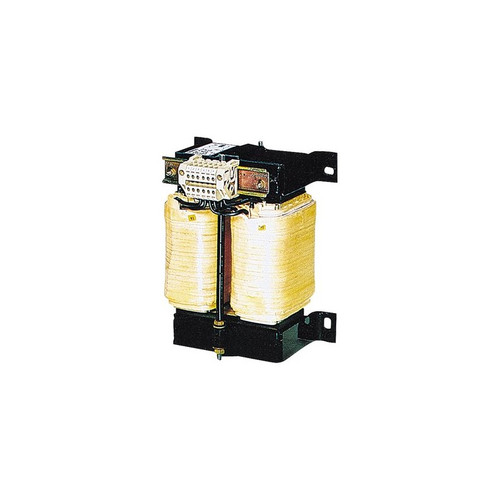

The 4AM5242-5FT10-0FC0 is a SITAS single-phase transformer designed for control and isolation applications. It features a primary voltage of 500V with a +/- 5% tolerance and a secondary voltage of 230V, delivering a secondary current of 2.3A. The transformer has a rated power of 0.535 kVA for continuous operation and 2.35 kVA for S6 duty. It is suitable for frequencies ranging from 50 to 60 Hz. The vector group is II0 with a shield winding configuration of /0. It is designed for an ambient temperature of up to 40°C and insulation class B. The transformer is protected to IP23 standards and utilizes screw/tab connections for terminals. Installation is achieved via screw mounting, and it complies with EN 61558-2-1, -2-2, and -2-4 standards, and is UL/CSA-recognized.
