4AM6542-5AT10-0FA1 SIEMENS

SKU: 4AM65425AT100FA1
$11,009.16
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 12.50 KGS
Width: 15.00 (cm)
Height: 18.00 (cm)
Depth: 20.00 (cm)
HS Code / Commodity code: 85043180
Adding to cart… The item has been added
Description

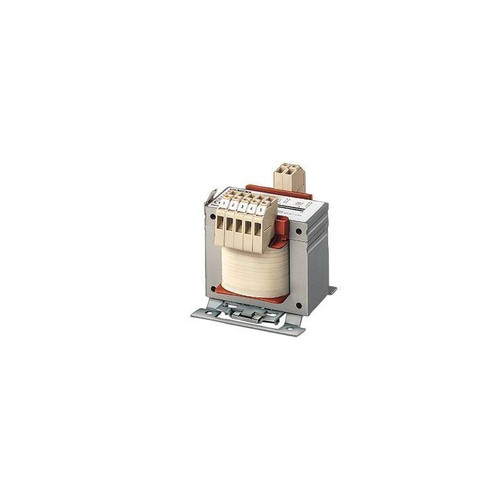

The 4AM6542-5AT10-0FA1 is a SITAS single-phase transformer designed for control and isolation applications. It features a primary voltage of 400V with a ±5% tolerance and a secondary voltage of 230V, delivering a secondary current of 10.87A. The transformer is rated at 2.5 kVA for continuous operation and 13.3 kVA for short-term operation (S6 duty cycle). It is suitable for use in 50...60 Hz frequency systems. The vector group is II0 with a shield winding configuration of /0. The transformer is designed for an ambient temperature of up to 40°C and insulation class B. It has an IP00 protection rating and utilizes cage-clamp terminals for secure connections. Installation is achieved via screw mounting, and it complies with EN 61558-2-1, -2-2, and -2-4 standards, and is UL/CSA-recognized.
