4AP3042-8CC40-0HA0 SIEMENS

SKU: 4AP30428CC400HA0
$26,330.40
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 25.00 KGS
Width: 20.00 (cm)
Height: 25.00 (cm)
Depth: 30.00 (cm)
HS Code / Commodity code: 85043200
Adding to cart… The item has been added
Description

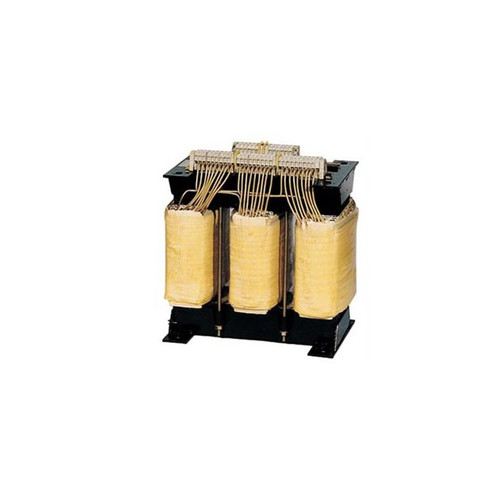

The 4AP3042-8CC40-0HA0 Siemens transformer is a SITAS three-phase transformer designed for industrial applications. It features a primary voltage (UPRI) configurable for Y500-440-380+/-20V or D289-254-220+/-11V, and a secondary voltage (USEC) of Y 400V / D 230V. The transformer's rated power (PN/PN(S6)) is 4 kVA continuous and 20 kVA for intermittent operation (S6 duty cycle). The secondary current (ISEC) ranges from 5.8A to 11.6A, and it is suitable for operation at frequencies of 50 to 60 Hz. The vector group and shield winding configuration is IIIIII0 / 0. It is designed for an ambient temperature (TA) of up to 40°C and insulation class B. The transformer has an IP00 protection rating and utilizes screw/tab connections for terminals. Installation is achieved via screw mounting. Compliant with EN 61558-2-1, -2-2, and -2-4 standards, it is UL/CSA-recognized as a control circuit and isolation transformer.
