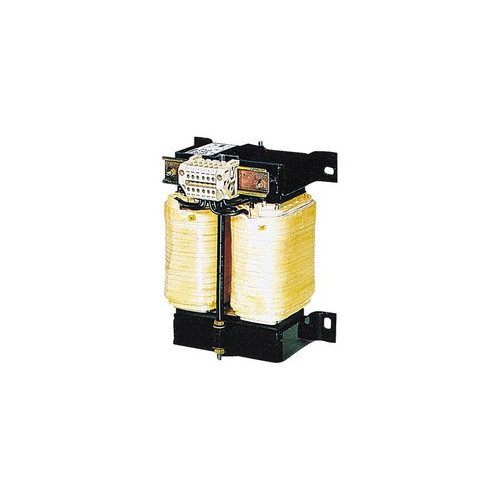

4AT3632-5AT10-0FD0 SIEMENS

SKU: 4AT36325AT100FD0
R501,364.75
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 25.00 KGS
Width: 20.00 (cm)
Height: 25.00 (cm)
Depth: 30.00 (cm)
HS Code / Commodity code: 85043200
Adding to cart… The item has been added
Description
The 4AT3632-5AT10-0FD0 is a SITAS single-phase transformer designed for control and isolation applications. It features a primary voltage of 400V with a +/-5% tolerance and a secondary voltage of 230V, delivering a secondary current of 21.7A. The transformer is rated for 5 kVA continuous power and 22.5 kVA intermittent power (S6 duty cycle). Operating at a frequency range of 50 to 60 Hz, it adheres to vector group II0 with a shield winding configuration. The transformer is designed for an ambient temperature of up to 55°C and insulation class H. It is enclosed in an IP54-rated housing, providing protection against dust and splashing water. Termination is achieved via screw connections, and installation is designed for screw mounting. Compliant with EN 61558-2-1, -2-2, and -2-4 standards, it is also UL/CSA-recognized, ensuring adherence to international safety and performance requirements.
