4AT3912-5AT10-0FD0 SIEMENS

SKU: 4AT39125AT100FD0
$38,560.68
IN STOCK
Express delivery
New - 12 Months warranty
Delivery: Ships within 3 business days
Worldwide delivery by DHL Express courier
Shipping: Calculated at Checkout
Weight: 25.00 KGS
Width: 35.00 (cm)
Height: 30.00 (cm)
Depth: 40.00 (cm)
HS Code / Commodity code: 85043200
Adding to cart… The item has been added
Description

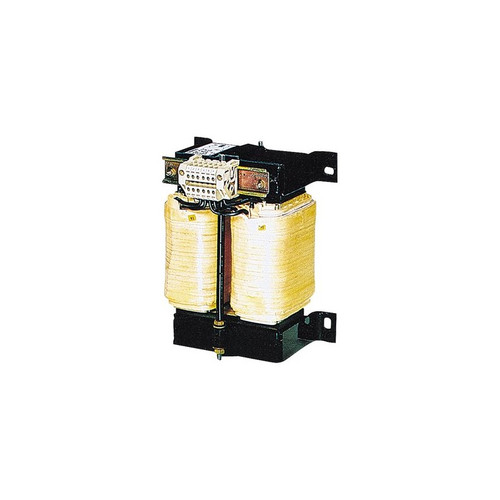

The 4AT3912-5AT10-0FD0 is a SITAS single-phase transformer designed for control and isolation applications. It features a primary voltage of 400V with a ±5% tolerance and a secondary voltage of 230V, delivering a secondary current of 27.4A. The transformer is rated at 6.3 kVA for continuous operation and 28.5 kVA for short-term operation (S6 duty cycle). It is suitable for operation at frequencies of 50 to 60 Hz. The vector group is II0 with a shield winding configuration of 0. The transformer is designed for an ambient temperature of up to 55°C and insulation class H. It is enclosed in an IP54-rated housing, providing protection against dust and splashing water. The transformer utilizes screw connections for terminals and is designed for screw installation, complying with EN 61558-2-1, -2-2, and -2-4 standards and is UL/CSA recognized as a control circuit and isolation transformer.
