6SE0170-1BC38-2AA7 SIEMENS

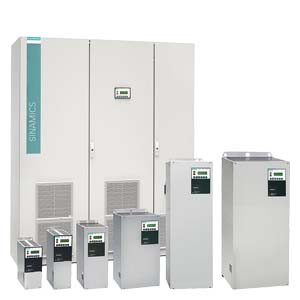

The SINAMICS G180 2T6A-77501-560 is a high-performance, water-cooled frequency converter designed for demanding industrial applications. It operates within a voltage range of 230-500V in TN/TT systems, supporting both 50Hz and 60Hz power supplies. This unit is engineered to deliver a typical motor output of 560kW at 500V, making it suitable for driving large motors in various industrial processes. The converter's dimensions, excluding optional components, are 2202mm in height, 1806mm in width, and 6605mm in depth. It features an IP54 protection rating, ensuring resilience against water splashes and dust ingress. The integrated 6-pulse line reactor minimizes harmonic distortion on the supply network. A DV/DT output filter is incorporated to protect the motor from voltage spikes and insulation stress. EMC compliance is achieved through an EN61800-3 line filter, meeting EN 55011 Class A standards for the second environment (C3), ensuring minimal electromagnetic interference. This robust design and comprehensive feature set make the SINAMICS G180 an ideal solution for applications requiring precise motor control and high reliability.
