6SL3210-1NE15-8AG1 SIEMENS

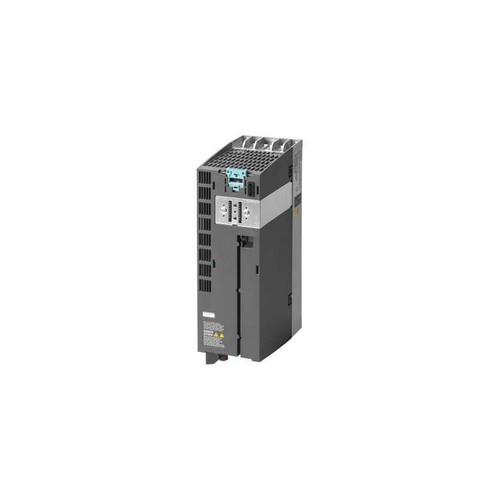

The SINAMICS G120 Power Module PM230 (6SL3210-1NE15-8AG1) is a key component of the SINAMICS G120 modular drive system, designed for controlling three-phase AC motors. This power module features an integrated Class A filter, providing effective protection against electromagnetic interference and ensuring compliance with EMC standards. With an IP20 protection rating, it is suitable for installation in environments where it is shielded from direct exposure to water and dust. The module is designed to operate on a three-phase AC voltage supply ranging from 380V to 480V, with a tolerance of +10%/-10%, and a frequency of 47-63Hz. It offers a low overload capacity, delivering a rated output power of 2.2kW. The overload capabilities include 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. It is designed for ambient temperatures ranging from 0 to +40 degrees Celsius (LO). The dimensions of the module are 196mm (height) x 73mm (width) x 165mm (depth), in the FSA frame size. This power module is designed to operate without a control unit or operator panel and is compatible with CU240B/E-2 and CU230P-2 control units with firmware version V4.4.
