6SL3210-1NE23-2AG1 SIEMENS

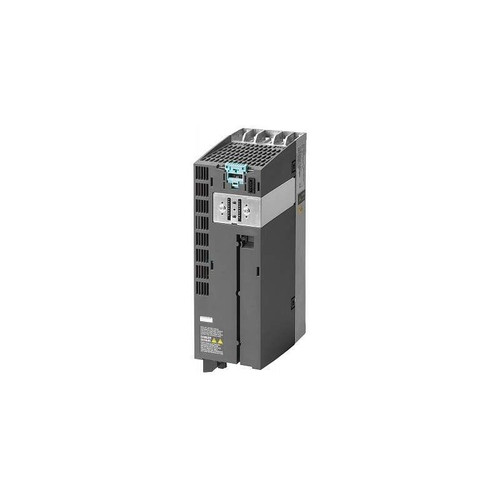

The SINAMICS G120 Power Module PM230 (6SL3210-1NE23-2AG1) is a robust and efficient drive component designed for a variety of industrial applications. It features an integrated Class A filter for enhanced electromagnetic compatibility and IP20 protection, ensuring safe operation in controlled environments. This power module is engineered to operate within a 3-phase AC voltage range of 380-480V, with a tolerance of +10/-10%, and a frequency range of 47-63Hz. It delivers a rated output of 15kW under low overload conditions, providing 150% overload capacity for 3 seconds, 110% for 57 seconds and 100% for 240 seconds. The module is designed to function reliably in ambient temperatures ranging from 0 to +40 degrees Celsius (LO). Its compact dimensions of 355mm (height) x 140mm (width) x 165mm (depth) in Frame Size C, facilitate easy integration into existing systems. This power module is supplied without a control unit or operator panel, offering flexibility in system configuration. It is specifically approved for use with CU240B/E-2 and CU230P-2 control units, and is compatible with Firmware Version V4.4 and later versions.
