6SL3210-1PE11-8UL1 SIEMENS

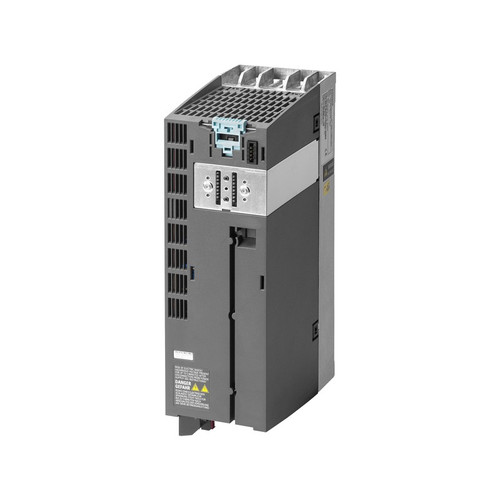

The Sinamics POWER Module PM240-2 (6SL3210-1PE11-8UL1) is an unfiltered power module with an integrated braking chopper, designed for three-phase AC line voltages ranging from 380V to 480V, with a tolerance of +10/-10% at a frequency of 47-63 Hz. This module is engineered to deliver high overload performance, providing an output of 0.37kW suitable for demanding applications. Specifically, it supports 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, all within an ambient temperature range of -10 to +50 degrees Celsius. For applications requiring lower overload, it delivers 0.55kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -10 to +40 degrees Celsius. The module's compact dimensions of 196 x 73 x 165 mm (Height x Width x Depth) in Frame Size A (FSA) facilitate easy integration into various systems. It features IP20 protection, ensuring safety and reliability in industrial environments. Note that this power module does not include a Control Unit or Panel and is approved for use with CU firmware version V4.6.
