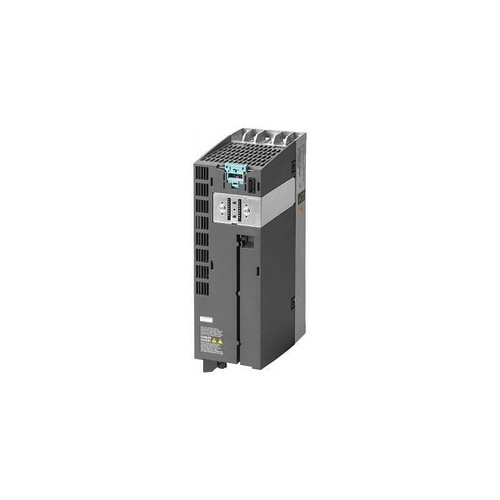

6SL3210-1PE16-1UL1 SIEMENS

The Sinamics POWER Module PM240-2 (6SL3210-1PE16-1UL1) is an unfiltered power module designed for three-phase AC power systems operating between 380-480V with a tolerance of +10/-10% at 47-63Hz. It features a built-in braking chopper for efficient energy dissipation during braking operations. This module is suitable for applications requiring high overload capabilities, delivering 1.5kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -10 to +50 degrees Celsius. Alternatively, it can provide 2.2kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -10 to +40 degrees Celsius under low overload conditions. The module's dimensions are 196 x 73 x 165 mm (Height x Width x Depth), and it comes in a FSA frame size with IP20 protection. Note that this power module does not include a control unit or panel, and it is approved for use with CU firmware version V4.6. This power module is designed to provide reliable and efficient power conversion for a variety of industrial applications. Its robust design and overload capabilities make it suitable for demanding environments.
