6SL3210-1PE22-7UL0 SIEMENS

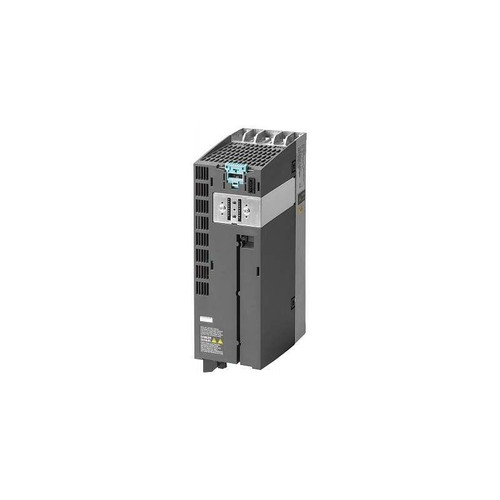

The Sinamics POWER Module PM240-2 (6SL3210-1PE22-7UL0) from Siemens is a robust and versatile power module designed for controlling three-phase AC motors. This module operates without a filter and features a built-in braking chopper for efficient energy management during deceleration. It accepts a three-phase input voltage of 380-480V AC with a tolerance of +10/-10% and a frequency range of 47-63Hz. The module offers two overload modes: a high overload mode suitable for demanding applications and a low overload mode for standard operations. In high overload mode, it delivers 7.5kW for 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, with an ambient temperature range of -10 to +50 degrees Celsius. In low overload mode, it provides 11kW for 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -10 to +40 degrees Celsius. The module's dimensions are 355mm (height) x 140mm (width) x 165mm (depth), and it comes in a Frame Size Class (FSC). It is designed with IP20 protection, safeguarding against solid objects.
