6SL3210-1PE24-5UL0 SIEMENS

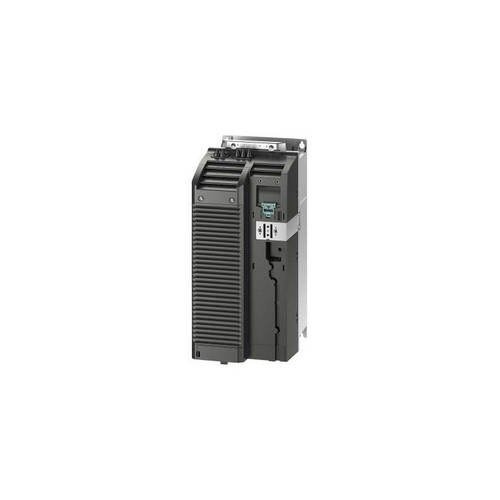

The Sinamics G120 Power Module PM240-2 (6SL3210-1PE24-5UL0) is a robust and versatile component designed for controlling three-phase AC motors. This module operates without a filter and features a built-in braking chopper for efficient energy management during deceleration. It accepts a wide input voltage range of 380-480V AC (+10/-20%) at 47-63Hz, making it suitable for various industrial power grids. The module offers two overload modes: a high overload (HO) mode delivering 18.5kW for demanding applications requiring 200% overload for 3 seconds, 150% for 57 seconds, or 100% for 240 seconds at ambient temperatures between -20 to +50 degrees Celsius. Alternatively, a low overload (LO) mode provides 22kW, supporting 150% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds at ambient temperatures from -20 to +40 degrees Celsius. Its compact dimensions of 472 x 200 x 237 mm (Height x Width x Depth) in the FSD size facilitate easy integration into control cabinets. The module is designed with IP20 protection, ensuring safety against solid objects. Note that this power module requires a separate Control Unit and Panel for complete operation. It is approved for use with CU firmware version V4.7 HF8.
