6SL3210-1PE27-5UL0 SIEMENS

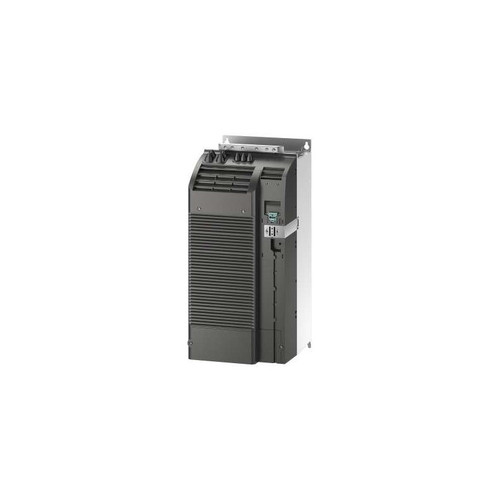

The Siemens Sinamics G120 Power Module PM240-2 (6SL3210-1PE27-5UL0) is a robust and versatile component designed for controlling three-phase AC motors. It operates within a voltage range of 380-480V AC, with a tolerance of +10/-20%, and at a frequency of 47-63Hz. This module features a built-in braking chopper, enhancing its ability to handle regenerative braking energy. It is configured without a filter, making it suitable for applications where filtering is handled externally. The PM240-2 offers two overload modes: a high overload mode delivering 30kW for demanding applications requiring 200% overload for 3 seconds, 150% for 57 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +50 degrees Celsius. Alternatively, a low overload mode provides 37kW for applications needing 150% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +40 degrees Celsius. Its compact FSD frame size measures 472mm in height, 200mm in width, and 237mm in depth. The module is protected to IP20 standards, indicating protection against solid objects larger than 12.5mm but not against water. This power module is ideal for a wide range of industrial applications requiring precise and reliable motor control.
