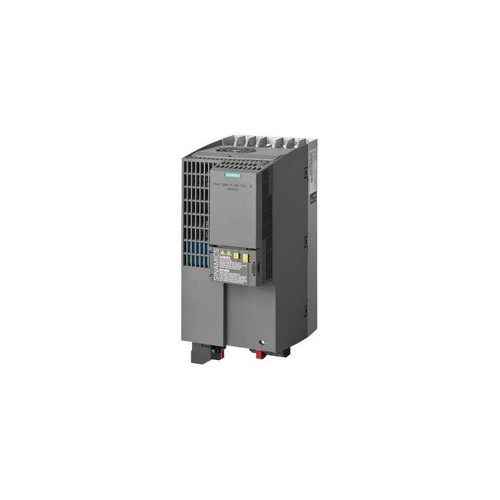

6SL3210-1PE34-8CL0 SIEMENS

The SINAMICS G120/S120 Power Module PM240-2 FSG C3 (6SL3210-1PE34-8CL0) is a robust and versatile power module designed for controlling AC motors in a variety of industrial applications. It features a built-in braking chopper for efficient energy dissipation during braking operations. This module is designed for operation with a three-phase AC supply voltage of 380-480V +10/-10% at 47-63Hz. The PM240-2 FSG C3 offers two overload modes: a high overload (HO) mode providing 200kW output for demanding applications requiring 200% overload for 3 seconds, 150% for 57 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +50 degrees Celsius. Alternatively, a low overload (LO) mode delivers 250kW output, supporting 150% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +40 degrees Celsius. The module's dimensions are 1000mm (height) x 305mm (width) x 357mm (depth), conforming to Frame Size G (FSG). It is designed with an IP20 protection rating, indicating protection against solid objects greater than 12.5mm. Note that this power module does not include a control unit or operator panel, and it is approved for use with CU firmware versions V4.7 SP9 and V5.1.
