6SL3210-1PH25-2UL0 SIEMENS

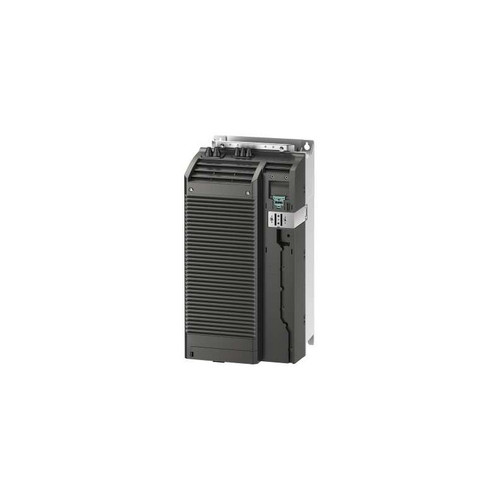

The Sinamics G120 Power Module PM240-2 (6SL3210-1PH25-2UL0) is a robust and versatile power module designed for controlling three-phase AC motors in a wide range of industrial applications. This module operates without a filter and features a built-in braking chopper for efficient energy management during deceleration. It accepts a 3-phase AC input voltage of 500-690V +10/-20% at 47-63Hz. The module offers two overload modes: a high overload mode providing 37kW output for demanding applications requiring 200% overload for 3 seconds, 150% for 57 seconds, or 100% for 240 seconds, suitable for ambient temperatures between -20 to +50 degrees Celsius. Alternatively, a low overload mode delivers 45kW output for applications needing 150% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +40 degrees Celsius. Its dimensions are 551 x 275 x 237 mm (Height x Width x Depth), form factor FSE, and protection rating IP20. Note that this power module is supplied without a Control Unit or Panel, and it is approved for use with CU firmware version V4.7 HF8.
