6SL3210-1RE24-5UL0 SIEMENS

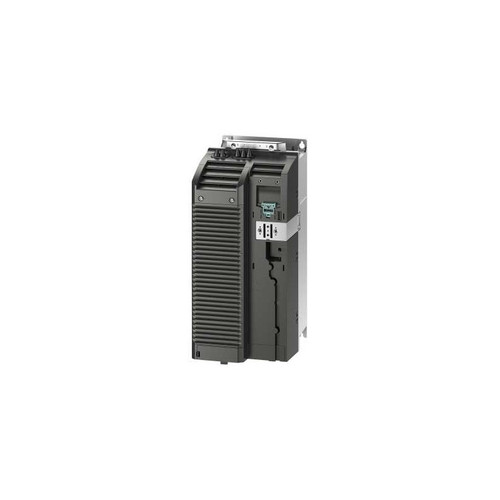

The SINAMICS G120 Power Module PM240P-2 (6SL3210-1RE24-5UL0) is an unfiltered power module designed for three-phase AC power systems operating between 380V and 480V, with a tolerance of +10/-20% and a frequency range of 47-63Hz. This module is engineered to deliver high overload performance, making it suitable for demanding industrial applications. In high overload (HO) mode, it can output 18.5kW for 60 seconds at 150% overload and 240 seconds at 100% load, within an ambient temperature range of -20 to +50 degrees Celsius. Alternatively, in low overload (LO) mode, it provides 22kW for 3 seconds at 135% overload, 57 seconds at 110% overload, and 240 seconds at 100% load, within an ambient temperature range of -20 to +40 degrees Celsius. The module's dimensions are 472mm (height) x 200mm (width) x 237mm (depth), and it comes in a frame size of FSD with an IP20 protection rating. It is designed to operate without a control unit or panel and is approved for use with CU firmware version V4.7 SP6 HF1. This power module provides robust and reliable power conversion for a variety of motor control applications. Its overload capabilities and wide operating temperature range make it a versatile solution for challenging industrial environments.
