6SL3210-1RE31-1UL0 SIEMENS

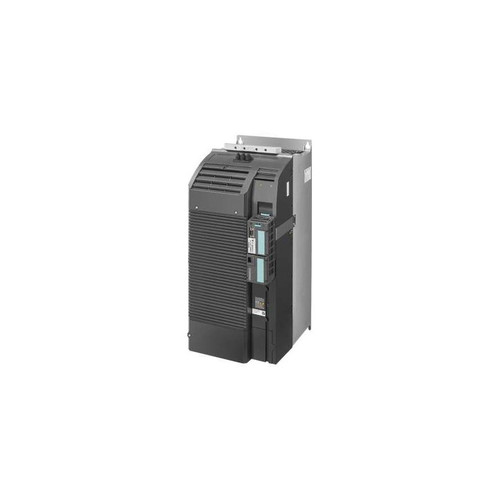

The SINAMICS G120 Power Module PM240P-2 (6SL3210-1RE31-1UL0) is an unfiltered power module designed for three-phase AC power systems operating between 380V and 480V, with a tolerance of +10/-20% at 47-63Hz. This module is engineered to deliver high overload performance, providing 45kW output for 150% overload for 60 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +50 degrees Celsius (HO). Alternatively, it supports low overload conditions, outputting 55kW for 135% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds, when the ambient temperature is between -20 to +40 degrees Celsius (LO). The module's dimensions are 551mm (height) x 275mm (width) x 237mm (depth), and it comes in a size FSE with an IP20 protection rating. Note that this power module is supplied without a control unit or operator panel, allowing for flexible configuration. It is approved for use with CU firmware version V4.7 SP6 HF1. This power module is ideal for applications requiring robust and adaptable motor control. Its versatile overload capabilities and temperature tolerance make it suitable for a wide range of industrial environments.
