6SL3210-1RH22-3AL0 SIEMENS

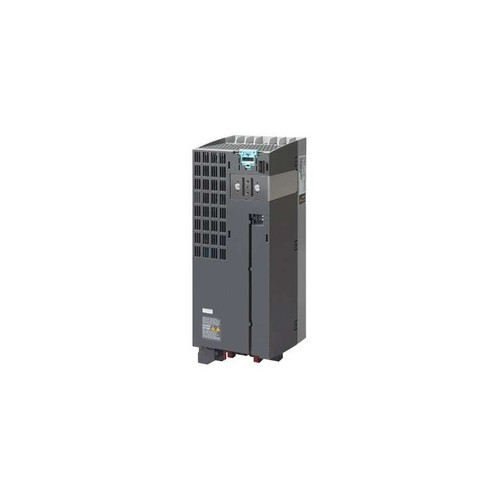

The SINAMICS G120 Power Module PM240P-2 (6SL3210-1RH22-3AL0) from Siemens is a robust and versatile component designed for controlling three-phase AC motors. It features an integrated Class A filter, ensuring compliance with electromagnetic compatibility standards. This power module is suitable for operation with a three-phase supply voltage of 500-690V AC, with a tolerance of +10/-20% and a frequency range of 47-63Hz. It offers two overload modes: a high overload (HO) mode delivering 15kW for 150% overload for 60 seconds and 100% for 240 seconds, suitable for ambient temperatures between -20 to +50 degrees Celsius, and a low overload (LO) mode providing 18.5kW for 135% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, optimized for ambient temperatures between -20 to +40 degrees Celsius. The module's dimensions are 472mm (height) x 200mm (width) x 237mm (depth), in frame size FSD, and it boasts an IP20 protection rating. Note that this power module is supplied without a control unit or operator panel, requiring separate purchase and installation. It is approved for use with CU firmware version V4.7 SP6 HF1, ensuring compatibility with the latest control unit software features and updates. This module provides reliable motor control in diverse industrial applications.
