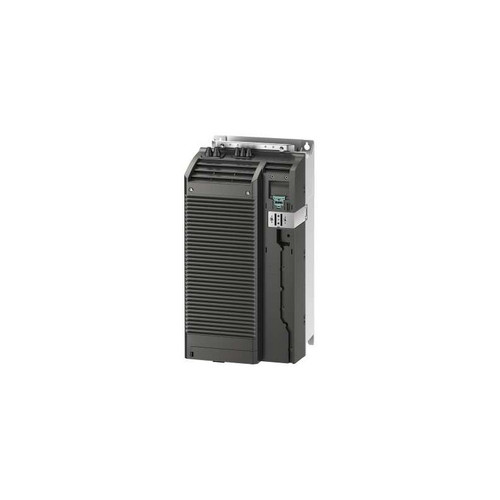

6SL3210-1RH25-2UL0 SIEMENS

The SINAMICS G120 Power Module PM240P-2 (6SL3210-1RH25-2UL0) is an unfiltered power module designed for three-phase AC line voltages ranging from 500V to 690V (+10/-20%) at 47-63Hz. It supports both high overload (HO) and low overload (LO) operating modes. In high overload mode, it delivers 37kW output for 150% overload for 60 seconds and 100% for 240 seconds, suitable for ambient temperatures between -20 to +50 degrees Celsius. For low overload applications, it provides 45kW output for 135% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -20 to +40 degrees Celsius. The module's dimensions are 551mm (height) x 275mm (width) x 237mm (depth), and it comes in a frame size FSE with an IP20 protection rating. This power module is designed to operate without a control unit or operator panel, requiring these to be purchased separately. It is approved for use with CU firmware version V4.7 SP6 HF1. This module is ideal for applications requiring robust power delivery and overload capacity. It ensures reliable performance in demanding industrial environments.
