6SL3210-1RH31-4UL0 SIEMENS

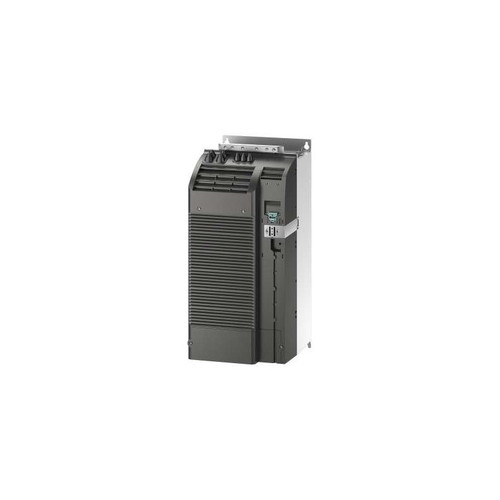

The SINAMICS G120 Power Module PM240P-2 (6SL3210-1RH31-4UL0) is an unfiltered power module designed for three-phase AC line voltages ranging from 500V to 690V, with a tolerance of +10%/-20%, and operating frequencies between 47Hz and 63Hz. This module is engineered to deliver high overload performance, providing 110kW output for 150% overload for 60 seconds, or 100% for 240 seconds, within an ambient temperature range of -20 to +50 degrees Celsius (HO). Alternatively, it supports a low overload output of 132kW for 135% overload for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds, when the ambient temperature is maintained between -20 to +40 degrees Celsius (LO). The module's dimensions are 708mm in height, 305mm in width, and 357mm in depth (FSF frame size), and it features an IP20 protection rating. It is designed without a control unit or operator panel, and is specifically approved for use with CU firmware version V4.7 SP6 HF1. This power module is ideal for applications requiring robust and reliable motor control in demanding industrial environments. Its versatile overload capabilities and wide operating temperature range make it suitable for a variety of applications. The absence of a control unit allows for flexible integration with existing control systems.
