6SL3211-1PB21-8UL0 SIEMENS

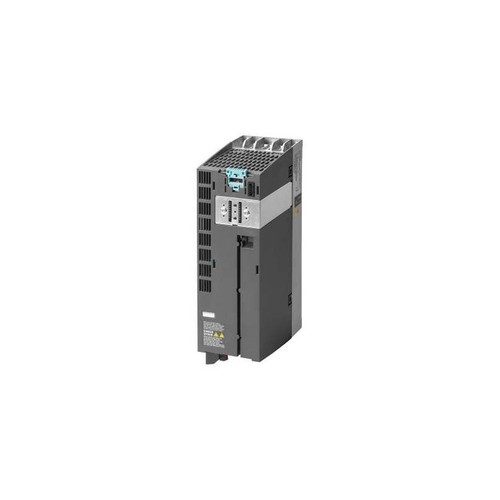

The SINAMICS Power Module PM240-2 (6SL3211-1PB21-8UL0) is a robust and versatile component designed for controlling motor drives in a variety of industrial applications. This module operates without a filter and incorporates a built-in braking chopper for efficient energy management during deceleration. It supports a wide input voltage range of 1/3AC 200-240V +10/-10% at 47-63Hz, ensuring compatibility with various power grids. The module offers two output overload modes: a high overload mode of 3kW suitable for demanding applications requiring 200% overload for 3 seconds, 150% for 57 seconds, or 100% for 240 seconds, and a low overload mode of 4kW for applications needing 150% for 3 seconds, 110% for 57 seconds, or 100% for 240 seconds. It is designed to operate within an ambient temperature range of -10 to +50 degrees Celsius in high overload mode and -10 to +40 degrees Celsius in low overload mode. The module's dimensions are 411 x 200 x 171 mm (Height x Width x Depth), and it comes in Frame Size Class (FSC). It features an IP20 protection rating, safeguarding against solid objects. Note that this power module does not include a control unit or panel and is approved for use with Control Unit firmware version V4.6.
