6SL3211-1PC31-1UL0 SIEMENS

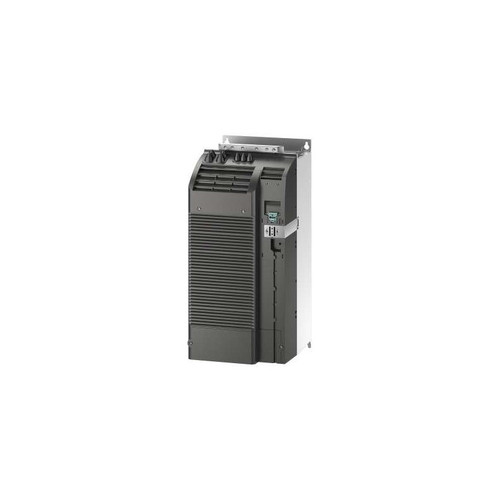

The SINAMICS G120 Power Module PM240-2 (6SL3211-1PC31-1UL0) is a robust and versatile drive component designed for demanding industrial applications. This module features a push-through mounting design and operates without an integrated filter, offering flexibility in system integration. It incorporates a built-in braking chopper for efficient energy management during deceleration. The module is compatible with a 3-phase AC input voltage of 200-240V +10/-20% at 47-63Hz. It supports high overload applications, delivering 22kW for 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, suitable for ambient temperatures between -20 to +50 degrees Celsius (HO). For lower overload requirements, it provides 30kW for 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of -20 to +40 degrees Celsius (LO). The module's dimensions are 615x354x237 mm (HxWxD) and it comes in a size FSE with IP20 protection. Note that this power module is supplied without a control unit and panel, and it is approved for use with CU firmware version V4.7 SP6.
