6SL3223-0DE24-0AG1 SIEMENS

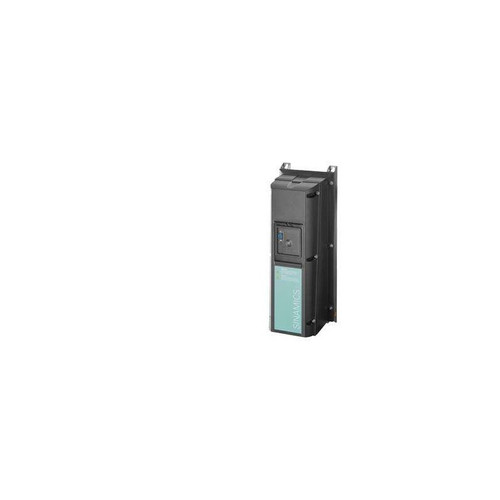

The SINAMICS G120P Power Module PM230 (6SL3223-0DE24-0AG1) is a robust and efficient power module designed for variable speed applications. It features an integrated Class A filter to minimize electromagnetic interference, ensuring reliable operation in sensitive environments. With an IP55/UL Type 12 degree of protection, this module is well-suited for demanding industrial settings, offering resistance against dust and water ingress. The module operates on a 380-480 V 3 AC power supply with a tolerance of +10/-10% and a frequency range of 47-63 Hz. It is designed for low overload applications, delivering 4kW of power with overload capabilities of 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. The module is designed to operate in ambient temperatures ranging from -10 to +40 °C. Its dimensions are 540mm (height) x 180mm (width) x 249mm (depth), and it comes in a FSB frame size. This power module is specifically released for use with the CU230P-2 Control Unit with Firmware version V4.3.2 or higher, ensuring compatibility and optimal performance. Note that this power module does not include a Control Unit or operating unit.
