6SL3225-0BE31-8AA0 SIEMENS

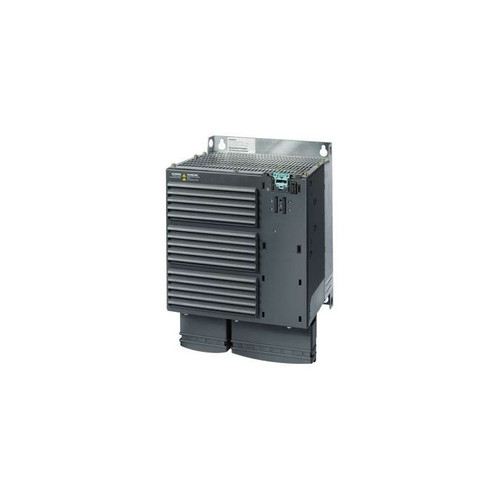

The Siemens Sinamics G120 Power Module PM250 (6SL3225-0BE31-8AA0) is a robust and versatile drive component designed for controlling three-phase AC motors. It features an integrated Class A filter, reducing electromagnetic interference and ensuring compliance with EMC standards. This module offers regenerative capabilities, allowing energy generated during braking to be fed back into the power supply, enhancing energy efficiency. The PM250 supports a voltage range of 3AC 380-480V +10/-10% at 47-63Hz, making it suitable for various industrial power grids. It provides two overload modes: a high overload capacity of 18.5kW for 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, and a light overload capacity of 22kW for 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. These overload capabilities cater to applications with fluctuating torque demands. The module is designed to operate in ambient temperatures ranging from 0 to +50 degrees Celsius under high overload conditions and 0 to +40 degrees Celsius under light overload conditions. Its dimensions are 512 x 275 x 204 mm (Height x Width x Depth), and it comes in a frame size of FSD with an IP20 protection rating. Note that this power module is supplied without a Control Unit and Basic Operator Panel (BOP), which must be ordered separately to complete the drive system.
