6SL3225-0BE33-0UA0 SIEMENS

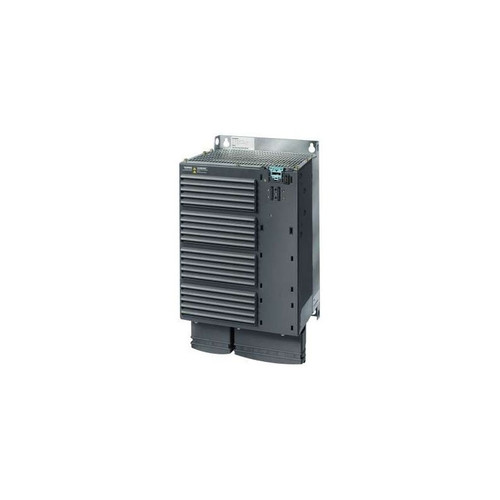

The Sinamics G120 Power Module PM250 (6SL3225-0BE33-0UA0) is a robust and versatile drive component designed for controlling three-phase AC motors. This module operates without an integrated filter, offering flexibility in system design where external filtering solutions may be preferred or required. It features regenerative capabilities, allowing energy generated during braking to be fed back into the power supply, enhancing energy efficiency. The module accepts a three-phase AC input voltage of 380-480V with a tolerance of +10/-10% and operates within a frequency range of 47-63Hz. It offers two overload modes: a high overload mode suitable for demanding applications requiring 30kW for 200% of the rated current for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of 0 to +50 degrees Celsius. Alternatively, it supports a light overload mode delivering 37kW for 150% of the rated current for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, within an ambient temperature range of 0 to +40 degrees Celsius. The module's dimensions are 499mm (height) x 275mm (width) x 204mm (depth), and it comes in a size FSE with an IP20 protection rating. Note that this power module is supplied without a Control Unit and Basic Operator Panel (BOP), which must be ordered separately to complete the drive system. This allows for customization based on specific application requirements.
