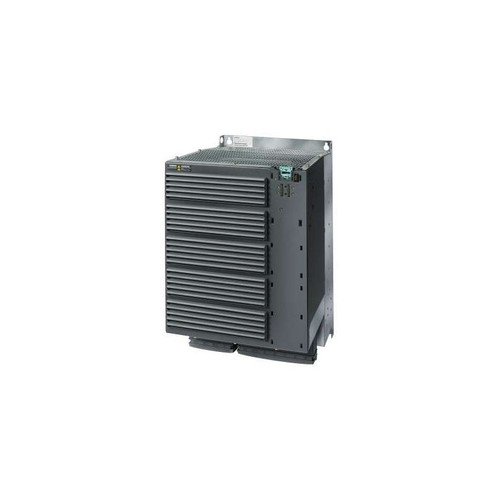

6SL3225-0BE37-5AA0 SIEMENS

The Sinamics G120 Power Module PM250 (6SL3225-0BE37-5AA0) is a robust and versatile drive component designed for demanding industrial applications. It features an integrated Class A filter, ensuring compliance with electromagnetic compatibility (EMC) standards and minimizing interference. The module offers regenerative capabilities, allowing for efficient energy management by feeding braking energy back into the power supply. It supports a three-phase AC input voltage of 380-480V with a tolerance of +10/-10% and operates within a frequency range of 47-63Hz. This power module is engineered for high overload conditions, delivering 75kW for 200% overload for 3 seconds, 150% overload for 57 seconds and 100% overload for 240 seconds. It can operate in ambient temperatures from 0 to +50 degrees Celsius under high overload conditions. For light overload applications, it provides 90kW for 150% overload for 3 seconds, 110% overload for 57 seconds and 100% overload for 240 seconds, within an ambient temperature range of 0 to +40 degrees Celsius. The module's dimensions are 934mm (height) x 350mm (width) x 316mm (depth), and it comes in a frame size FSF with an IP20 protection rating. Note that this power module is supplied without a Control Unit and Basic Operator Panel (BOP).
