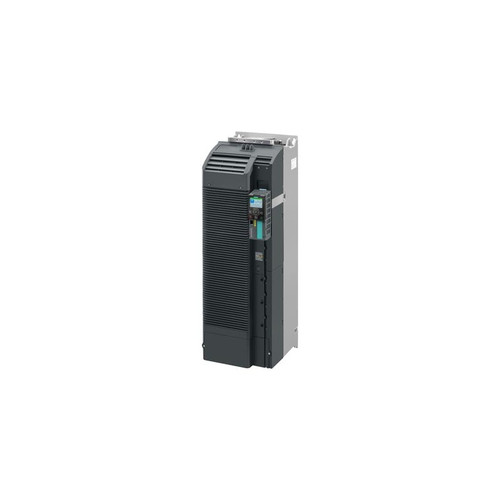

6SL3310-1PE34-6AA0 SIEMENS

The Sinamics G120P Power Module PM330 (6SL3310-1PE34-6AA0) from Siemens is a robust and versatile power electronic component designed for controlling three-phase AC motors in a variety of industrial applications. This module operates without an integrated filter and braking chopper, offering flexibility in system design. It accepts a three-phase AC input voltage of 380-480V with a tolerance of +10/-10% at a frequency of 47-63Hz. The PM330 is engineered to deliver high overload capabilities, making it suitable for demanding applications. Specifically, it supports a high overload output of 200kW for 150% of the rated current for 60 seconds, and 100% for 240 seconds. For lighter duty cycles, it provides an output of 250kW at 110% for 60 seconds, and 100% for 240 seconds. It is designed to operate in ambient temperatures ranging from 0 to +40 degrees Celsius. The module's dimensions are 1447 x 452 x 328 mm (Height x Width x Depth) and it comes in a FSGX frame size with an IP20 protection rating. This power module is designed to be used without a Control Unit and Panel, and is approved for use with the CU230P-2 Control Unit for firmware version V4.6.
