6SL3525-0PE27-5AA1 SIEMENS

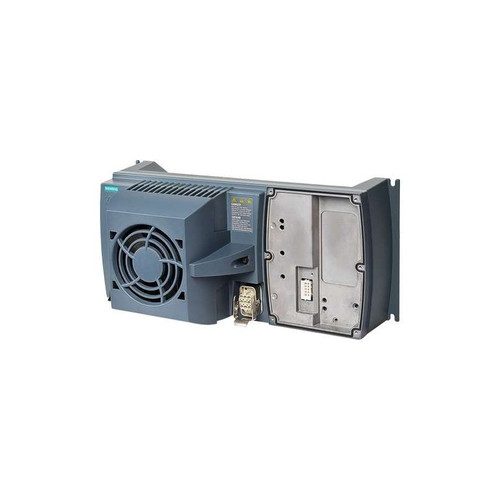

The SINAMICS G120D Power Module PM250D (6SL3525-0PE27-5AA1) is a decentralized drive system component designed for efficient motor control and energy management. This power module features an integrated Class A filter, ensuring compliance with electromagnetic compatibility (EMC) standards and minimizing interference. It supports energy recovery, allowing for efficient use of braking energy. The module operates on a 380-480 V 3 AC power supply with a tolerance of +10/-10% and a frequency range of 47-63Hz. It is designed for high overload applications, delivering 7.5kW at 200% overload for 3 seconds, 150% for 60 seconds, and 100% for 300 seconds. The module is rated for operation in ambient temperatures ranging from -10 to +55 °C. Its compact dimensions of 210x450x220 mm (HxWxD) and FSC (Frame Size C) facilitate easy integration into various machine designs. The IP65 degree of protection ensures robust performance in harsh industrial environments, safeguarding against dust and water ingress. Note that this power module requires a separate Control Unit for complete drive functionality.
