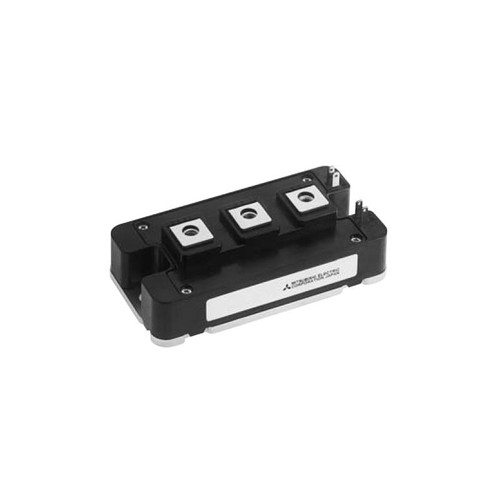

CM500HA-34A MITSUBISHI ELECTRIC

The CM500HA-34A is a single-module Insulated Gate Bipolar Transistor (IGBT) from Mitsubishi Electric, designed for high-power switching applications. This module features a collector current rating of 500A and a collector-emitter voltage of 1.7kV, making it suitable for demanding industrial environments. It is engineered to handle power dissipation up to 5kW, ensuring efficient operation in high-frequency circuits. The CM500HA-34A is capable of operating at a maximum junction temperature of 150°C, providing thermal robustness and reliability. Its isolated baseplate design simplifies heat sinking and enhances thermal management. This IGBT module is commonly used in inverters, converters, and power supplies for motor drives, uninterruptible power supplies (UPS), and renewable energy systems. The module's robust construction and high-performance characteristics contribute to the overall efficiency and reliability of power electronic systems. Mitsubishi Electric's advanced manufacturing processes ensure consistent quality and performance. The CM500HA-34A offers a compact and efficient solution for high-power switching needs.
