FR-A840-00310-1-N6 MITSUBISHI ELECTRIC - REF

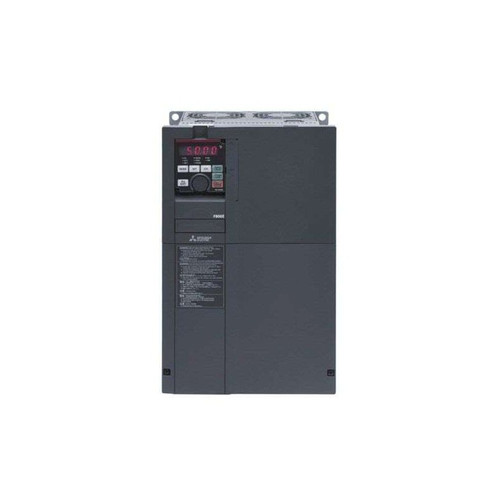

The FR-A840-00310-1-N6 is a sophisticated Variable Speed/Frequency Drive (VSD/VFD), also known as an inverter, from Mitsubishi Electric's renowned FREQROL FR-A800 Plus series. This advanced drive features an extended conformal coating and an FM terminal, enabling PTO (Power Take-Off) output for specialized applications. Designed for three-phase power systems, it accepts an input voltage ranging from 380Vac to 500Vac. With a power rating of 11kW (15HP) and a normal duty current of 23A, this drive efficiently controls motor speed and torque. It delivers an output frequency range of 0.2 to 590Hz, providing precise motor control for diverse industrial needs. Integrated Modbus RTU communication allows for seamless integration into existing automation systems. The IP20 protection rating ensures safe operation in controlled environments. This model is compatible with nominal input voltages of 400Vac, 415Vac, and 480Vac. Enhanced chemical resistance, achieved through circuit board coating and plated conductors compliant with IEC60721-3-3 3S2 3C2 standards, ensures reliability in harsh industrial conditions.
